Start of 2020 Update

Apologies to anyone who’s been waiting for an update on any of the projects I’ve put on here – I’ve had a lot going on over the last year and writing up all of this information takes me a lot of time so has taken a bit of a back seat. None of that information has been lost and I hope to start catching up on all of this over the next few months.

Where we are right now :

V6 Mazda RX8

The V6 engine has been fully rebuilt and has been sat in my living room next to an engine crane for about 8 months now, Partly this is due to me not currently having a garage to work in and it being winter and partly due to being very busy last summer. But yes, the project is still ongoing and hopefully will make good progress this year.

Six million dollar welder

Is still on my workbench awaiting the last couple of bits. I’ve had to swap out 24V PSU’s a couple times as they couldn’t deal with the current of the new feed motor. It now works but needs the relays mounted to the panel so I need to remember to find 4″ of DIN rail.

DL180 Server

Is still working beautifully after the Arduino fan controller mod. It’s been hosting this blog ever since so something like 12 months now without a problem. It also provides the storage for my CCTV system.

Hikvision CCTV

I’ve got a couple of updates to write about expanding the system beyond the original one camera setup I wrote up last year. Using multiple cameras with network storage seems to be poorly documented and have a few interesting quirks but after some work I got it working fine. The biggest problem I’ve had since is when the local police asked for my footage following a nearby break-in I had to supply them on a 1 Tb hard drive! High resolution digital video takes up a lot of space!

Other Projects

I’ve had various other projects going on as well. I’ve started looking into using NodeMCU WiFi microcontrollers as sensor nodes with their own web servers around my house with NodeRed requesting the page and parsing the HTML to return the information I want. I can read the temperature sensor connected to the nodes and control the LED on the MCU from NodeRed. Currently the data is not stored because I ran out of time trying to get MySQL setup. I’ll write this all up at some point

Raspberry Pi’s – I seem to have collected a selection of Raspberry Pi’s somewhere along the way. I have a Zero, a ZeroW, 1B (which in a different life I turned into a PoE CCTV camera), 2B and 3B plus I think somewhere there’s another 2B. I really should do something cool with them!

Wooden storage box – I started restoring a large wooden box some time ago. The box used to be in my granddad’s workshop as a toolbox for many years and before that I gather it belonged to his uncle so it’s been around for a long time and has suffered a bit with use and age with some areas with woodworm damage and the rope handles badly degraded. It has also been painted brown at some stage so I’ll need to get that cleaned up as well. I intend to restore it to a ‘usable’ condition so rather than trying to make it as new just tidy it up, repair the damage and make it solid enough not to degrade further but still look like the well used item it is.

Subwoofer project – Has been in constant use for ages despite never being technically finished. I really need to actually finish it and write this up!

There will be more but I think that’s enough update for now – rest assured I’ve not stopped! Especially since this morning another turbo arrived in the post, the fourth I now have here….

How to Set up Hikvision Network Cameras

Recently one of my neighbours told me there had been an incident where someone was seen trying van doors along the street late at night and combined with the habit of numerous people attempting to turn their cars round on my driveway with seemingly no ability to successfully do so or any apparent awareness of their surroundings I decided it was probably a good idea to get security cameras to keep an eye on the place!

I started looking into it and decided that network type cameras were the best idea because I already have a suitable server to store the footage and a long time ago started running substantial amounts of CAT5e cabling all over my house because due to having thick stone walls WiFi from a normal home router really wasn’t an option. Since I needed to install three separate wireless access points to cover all the indoor areas and so needed to run cable across the house anyway. With (at least some!) of the cable run in it sounded like the best solution.

At this point I should probably point out that I know nothing about what is the best camera, I can’t say for sure if what I bought were actually the best option but they seem pretty good so far but your mileage may vary.

So after a bit of searching I found that Hikvision cameras get good reviews and are generally quite well regarded so when a couple came up on eBay for a decent price I went for it. The model I bought was the DS-2CD2055FWD-I.

Hikvision DS-2CD2055FWD-I 5MP Camera

This is a 5MP camera which supports power over ethernet according to the 802.3AF standard but also come with a connector to allow the unit to be powered from a standard 12V wall adapter with a barrel plug. These cameras have an on board micro-SD card slot so can record both internally and to a network drive/DVR.

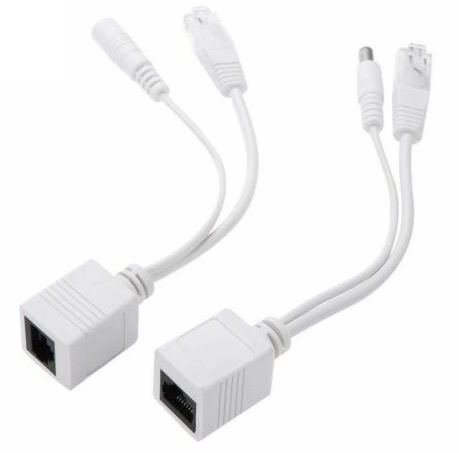

Because I didn’t have proper POE set up I decided to use a passive POE injector/splitter set from eBay, these are available for a couple of quid and allow power from a barrel connector power adapter to be merged with 100Mbit data onto a standard CAT5e cable. They have limitations but for low power over short distances they’re quite useful and let me keep the power supply safely inside.

Passive POE Injector

These aren’t weatherproof so I suggest if you’re using them tuck them somewhere sheltered or waterproof them. Or just buy a switch with proper POE support!

Ok so once you having network and power to the camera next you need to start configuring it. From a computer attached to the same network you need to install the Hikvision utility SADP which can be downloaded from here:

https://www.hikvision.com/en/Support/Downloads/Tools .

This will scan your network for active cameras and display them in a list. just click the check box on the camera you want to configure and enter a password – make a note of this password – you will need it to make further changes to the camera later on. Then you can set up the IP parameters for the camera. More details on this process can be found here:

SADP Manual

The rest of the camera configuration is generally as per how you want it for your specific use, the interesting bit comes when you try to get it to connect to a network drive as there seem to be a few issues.

Hikvision cameras don’t seem to have a good implementation of network drive access, the main problem being that if presented with a network drive of over a certain size (no-one seems to know what size but it is in the order of 100’s of gigabytes rather than terabytes) the camera fails the initialise the network drive. Creating a network folder with a quota doesn’t work either, windows devices will show the quota limit as the drive space but the Hikvision camera will still show the total volume size. We need to limit it in a more low level way!

The best solution I found under windows was to create a virtual hard disk in the machine you want to be the server. This is done by opening the windows disk management tool and selecting action -> create VHD then you just choose the appropriate size and where you want to save the virtual drive file. If you choose to create a fixed size a file of the full drive size will be created at the chosen location. I created a fixed size VHD of 200 Gb on my storage drive and this seemed to work well but a dynamic would probably work fine. The new drive will be shown in the drive list and should be initialised, right click on the new drive and initialise it as MBR. Do the same again but this time create a new simple volume of the full drive size and format it.

Once the new drive is created it will be shown in windows explorer and look just like any other drive. Next you need to share the drive over the network which in my case involved creating a second account on the server (or whatever PC you’re storing the data to) with limited access to do anything to the PC. Then the new drive is shared under this user account on the network. The username and password are needed to allow the camera to connect so make a note of these.

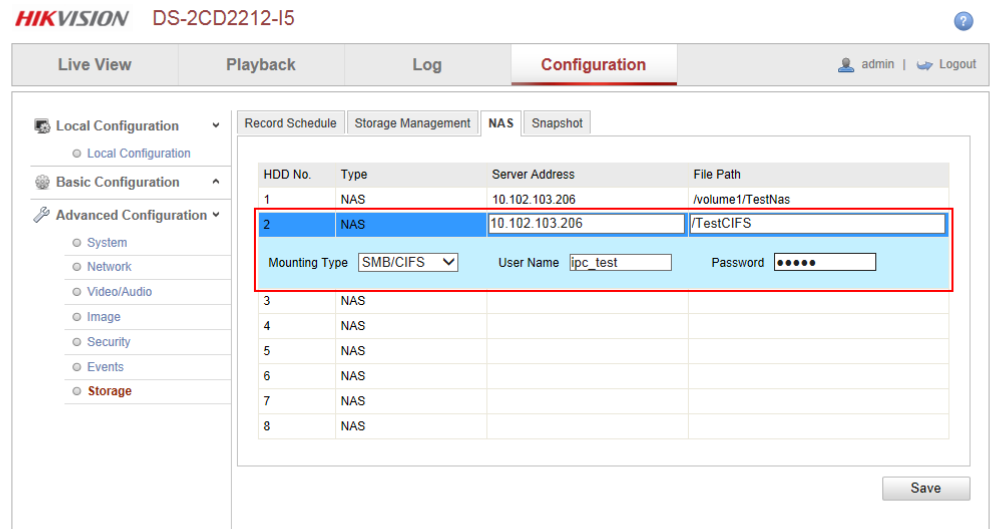

Next navigate a computer on the network to the IP address you configured for the camera and when prompted log in. Go to the configuration tab and under “advance configuration” select storage. and go to the “NAS” or possible “NET HDD” tab depending on version. Enter the IP address of the server and under file path enter the the network folder you shared earlier but prefix it with a forward slash. For example if you shared the drive under the network name Video then enter “/Video” without the quotes in the box. Mount type will usually be “SMB/CIFS” then username and password as you configured earlier for the user account on the drive.

Not shown in this picture is the “test” button next to the password, click test and hopefully you will get a message telling you testing succeeded.

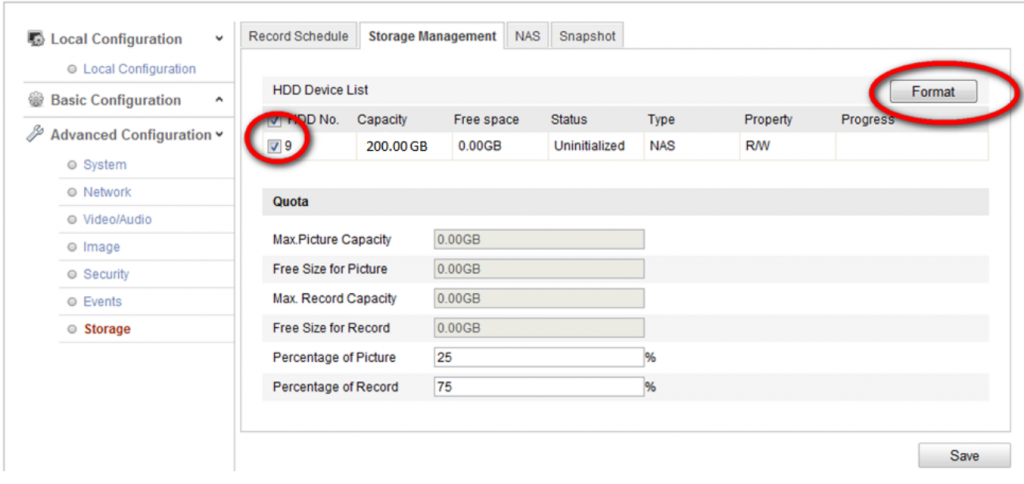

Next you go across to the “Storage Management” (or possibly “HDD Management”) tab and with any luck the drive you just added will be listed. Click the check box and click format.

Once that completes it now has a network drive to write to!

Other points to note:

The camera will keep as much footage as it can in the space it has but will remove older footage once the space is full. You can have multiple destination drives but the camera will write the most recent data too all of them with the smaller spaces retaining less far back so you can have a camera with say a 16Gb SD card internally and a 200Gb network

5MP footage takes up a lot of storage space so I recommend creating a separate virtual drive for each camera if you spare the space!

You might notice if you use Chrome that you cannot get a preview from the camera – this is due to the camera using old plugins that are no longer compatible but if you search for a Chrome extension called IE Tab and install it adds a new button next to the address bar. Click the new button and go to the camera login again and you should find you get a preview!

There is a guide to get up Hikvision cameras on Synology NAS systems which might also be helpful for other network shares : https://us.hikvision.com/sites/default/files/tb/quick_start_guide_of_hikvision_ip_camera_synology_nas_connection_v1.1_0.pdf
